Example configurations

load 3D view

open in 3D Viewer
STOROJET Lagerregal

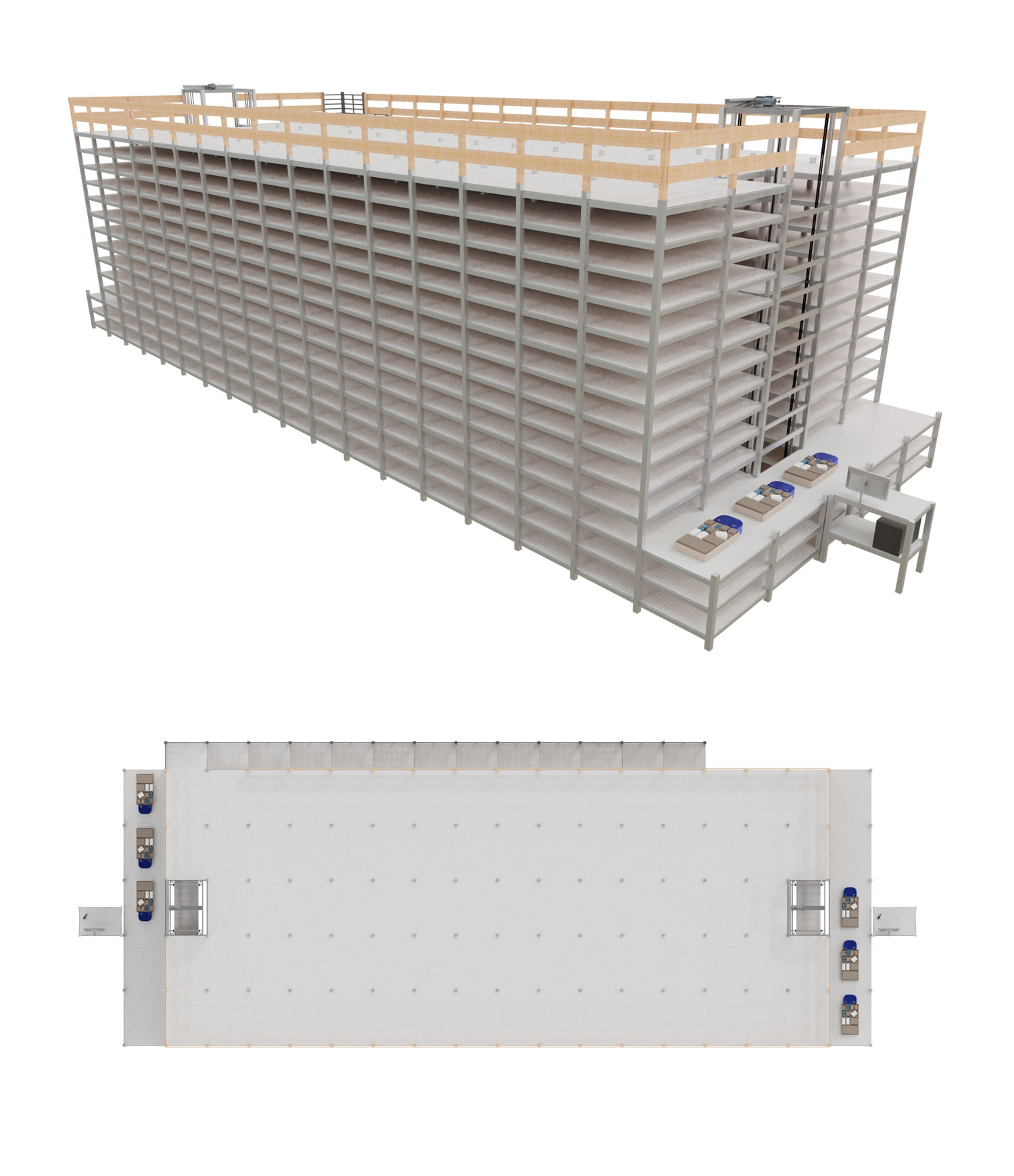

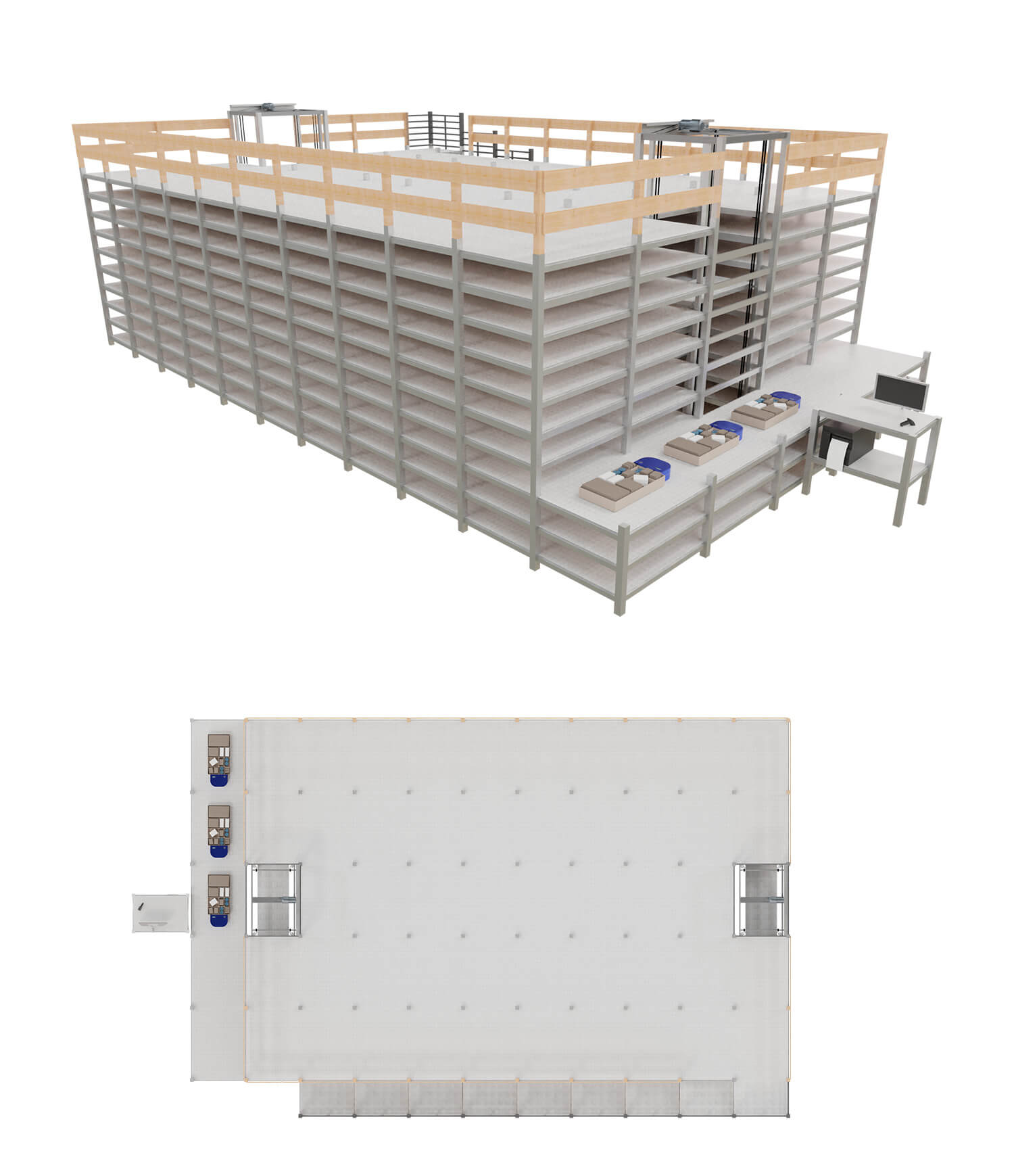

Example x1

Overview of data1

STOROJET storage shelf
Height: 5,85 m (plus 1 m for the lifts)
Levels: 14 (clearance 350 mm)
Footprint: 155 m2
Net Storage Space: 853 m2
Highspeed Lifts: 2
Robots: 40

Goods carriers
500x500 mm (WxD): 2.400 (70%)
500x900 mm (WxD): 570 (30%)

Ports
Storage and retrieval 2

Performance
Daily operating time: 8 hours
Approx. Picks2 - Day | Hour: 2.400 | 300

Price3: 430.000 €

load 3D view

open in 3D Viewer
STOROJET Lagerregal

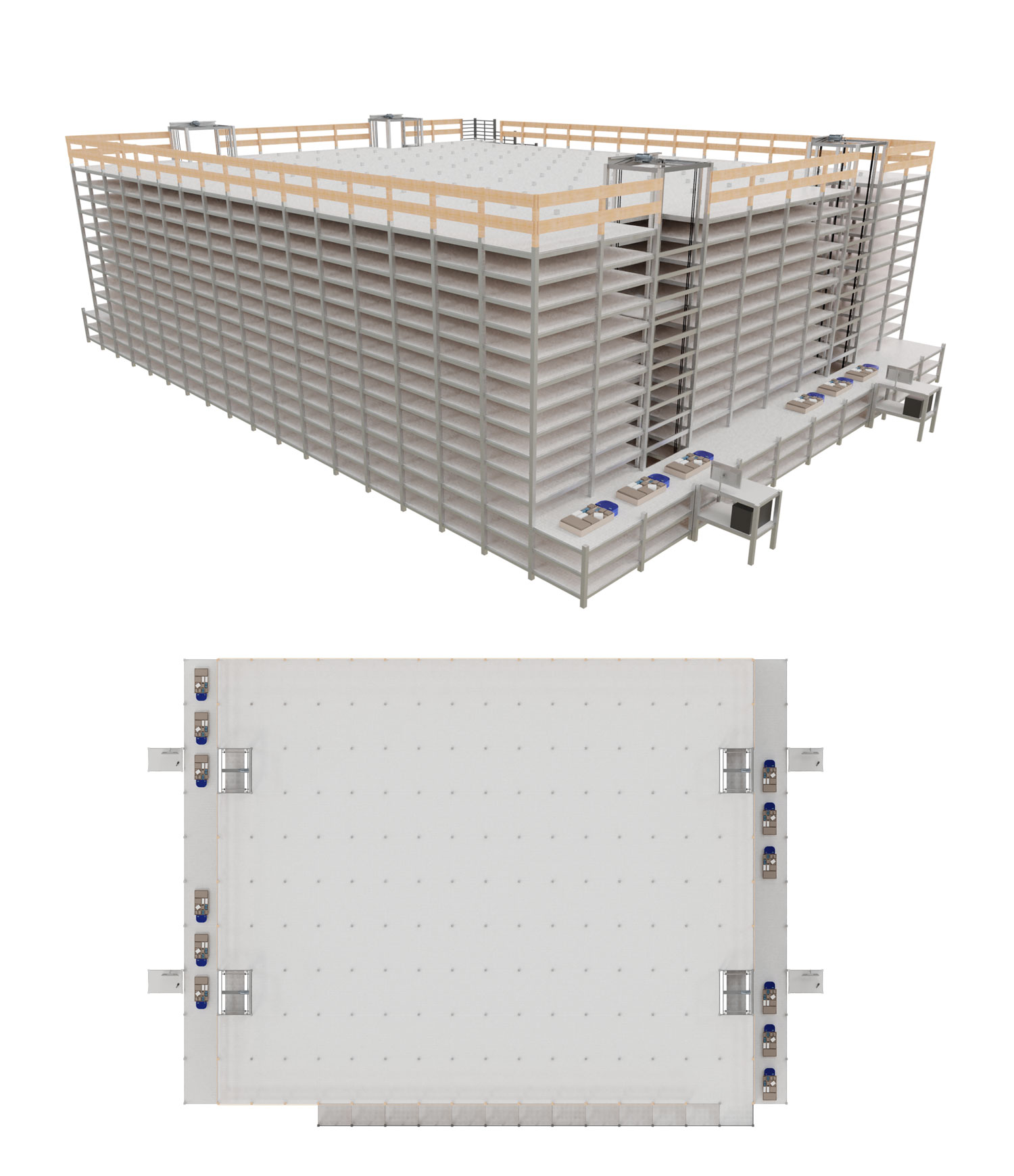

Example x2

Overview of data1

Storojet storage shelf
Height: 5,85 m (plus 1 m for the lifts)
Levels: 14 (clearance 350 mm)
Footprint: 310 m2
Net Storage Space: 1.705 m2
Highspeed Lifts: 4
Robots: 90

Goods carriers
500x500 mm (WxD): 4.800 (70%)
500x900 mm (WxD): 1.150 (30%)

Ports
Storage and retrieval: 4

Performance
Daily operating time: 8 hours
Approx. Picks2 - Day | Hour: 4.800 | 600

Price3: 750.000 €


load 3D view

open in 3D Viewer
STOROJET storage shelf

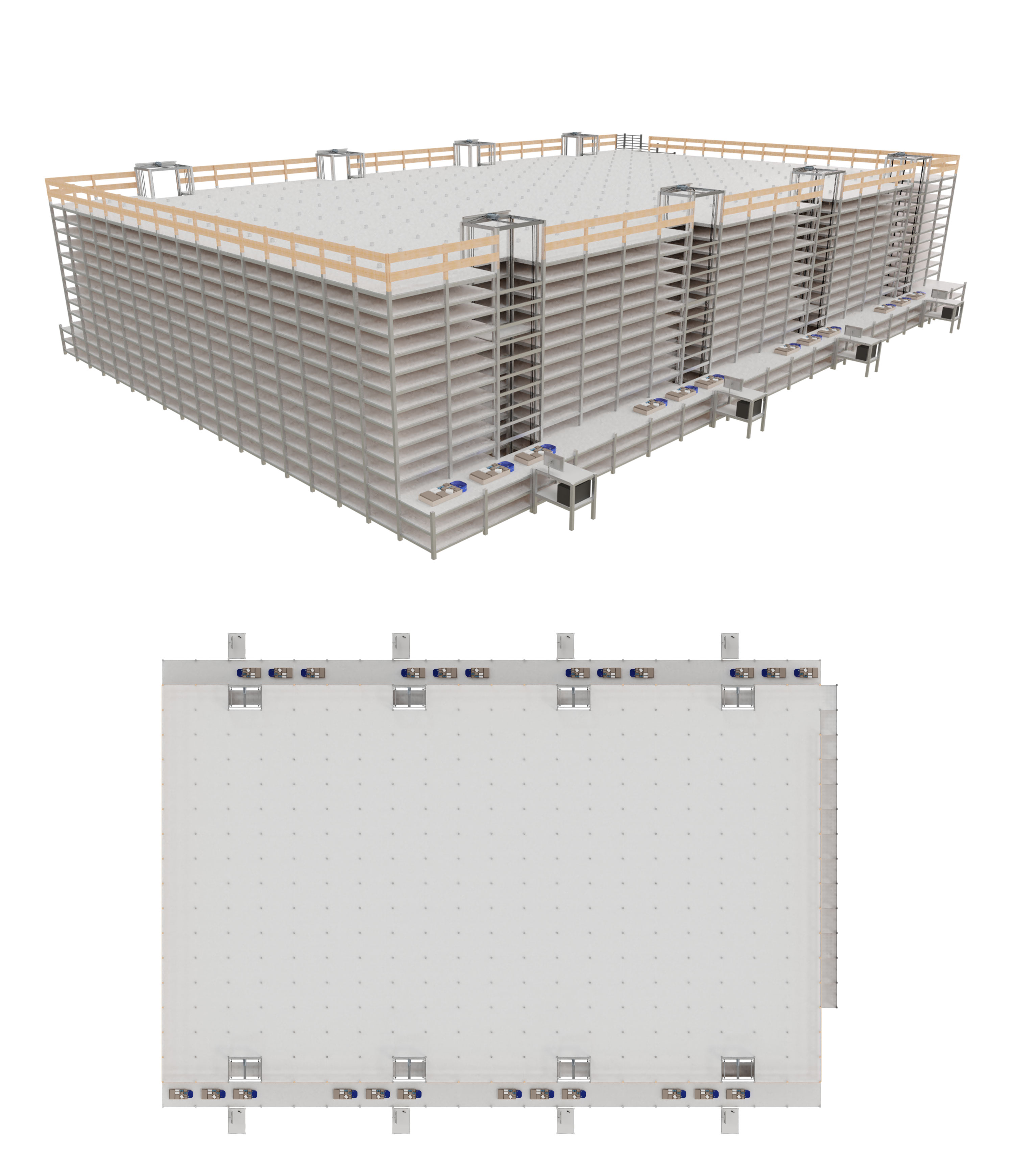

Example x4

Overview of data1

Storojet storage shelf
Height: 5,85 m (plus 1 m for the lifts)
Levels: 14 (clearance 350 mm)
Footprint: 620 m2
Net Storage Space: 3.415 m2
Highspeed Lifts: 8
Robots: 180

Goods carriers
500x500 mm (WxD): 8.200 (70%)
500x900 mm (WxD): 3.050 (30%)

Ports
Storage and retrieval: 8

Performance
Daily operation time: 8 hours
Approx. Picks2 - Day | Hour: 9.600 | 1.200

Price3: 1.350.000 €


load 3D view

open in 3D Viewer
STOROJET storage shelf

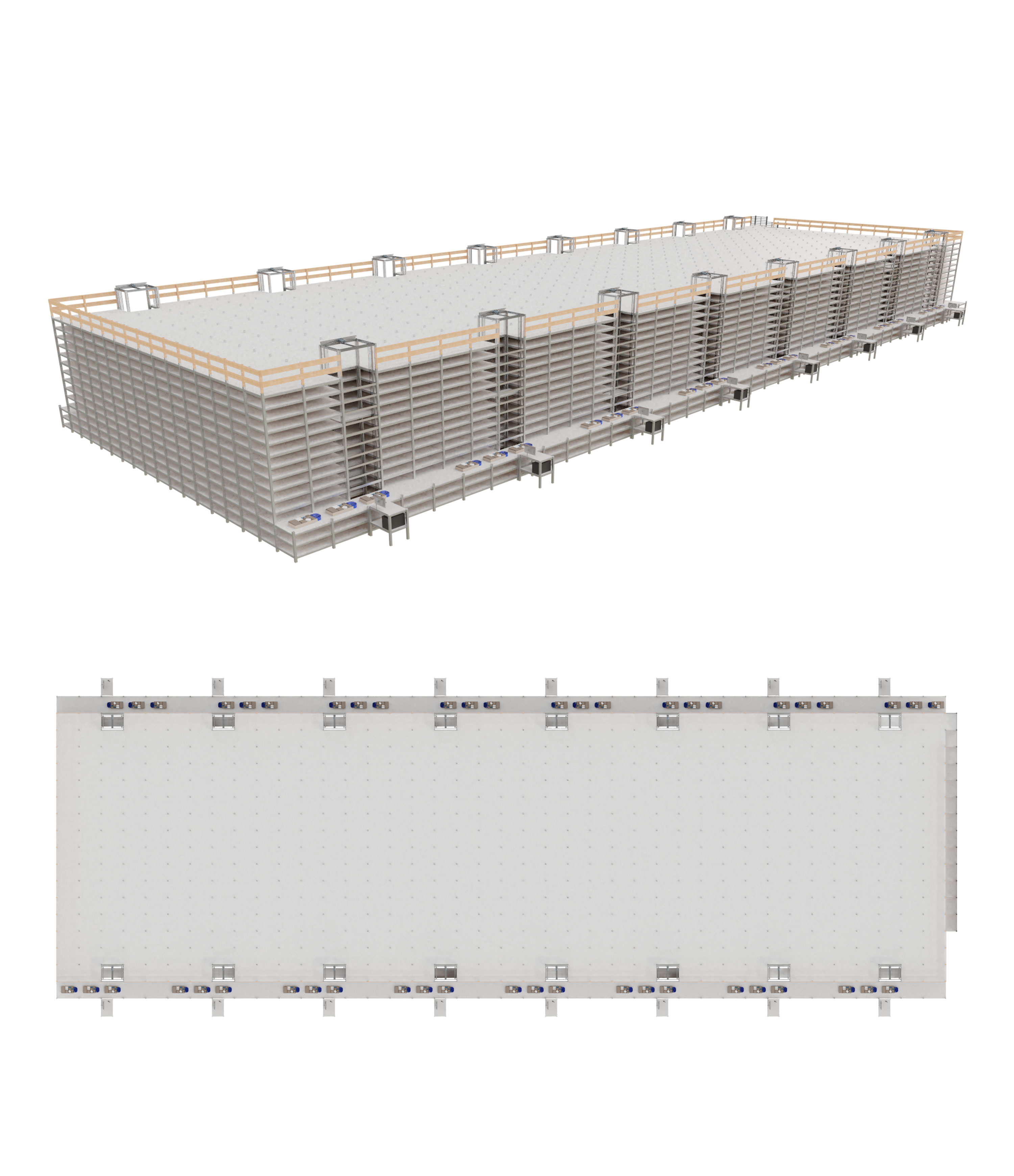

Example x6

Overview of data1

Storojet storage shelf
Height: 5,85 m (plus 1 m for the lifts)
Levels: 14 (clearance 350 mm)
Footprint: 1.240 m2
Net Storage Space: 6.830 m2
Highspeed Lifts: 16
Robots: 330

Goods Carriers
500x500 mm (WxD): 19.100 (70%)
500x900 mm (WxD): 4.600 (30%)

Ports
Storage and retrieval: 16

Performance
Daily operating time: 8 hours
Approx. Picks2 - Day | Hour: 15.840 | 1.980

Price3: 2.500.000 €


load 3D view

open in 3D Viewer
STOROJET storage shelf

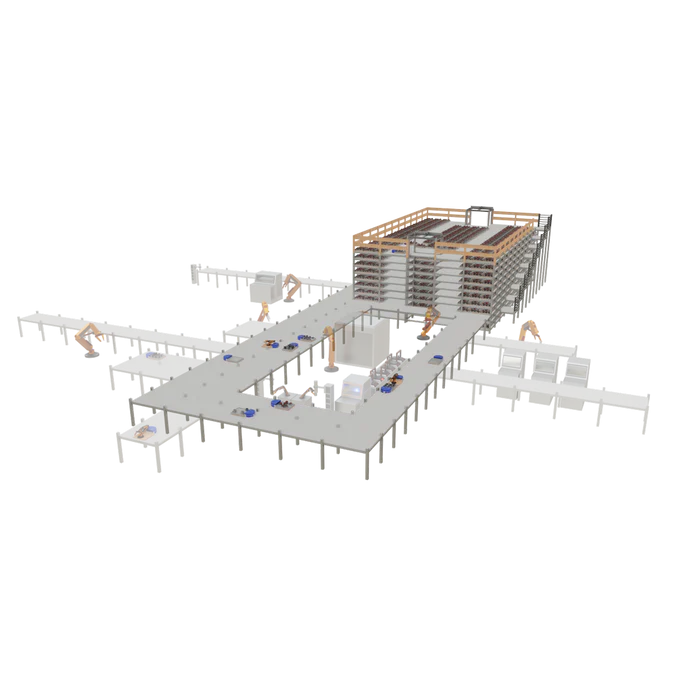

Complex configurations

Overview of data1

Storojet storage shelf
Optimum use of space even with sloping ceilings
Connect storage shelfs across different halls with fire protection locks
Housing of storage shelfs
Build the storage shelf around hall columns
Individual distances of the different shelf levels

Goods Carriers
Different goods carrier sizes within one system
individual compartments on the goods carriers

Ports
Ports on different floors possible
Branched ports for e.g. production supply
Support for the order pickers using pick-by-light

Perfomance
Order picking on two shelf levels per port for more performance


1These configurations are examples only. The systems can be precisely adapted to your needs in terms of height, floor space, level spacing, performance and product support sizes.

2The number of picks always refers to the presentation of individual product carriers. If several articles can be removed from the same rack, the picking performance increases significantly.

3Due to the currently fluctuating commodity prices, the stated sales prices are plus daily commodity price surcharges.

Changes and errors excepted.
