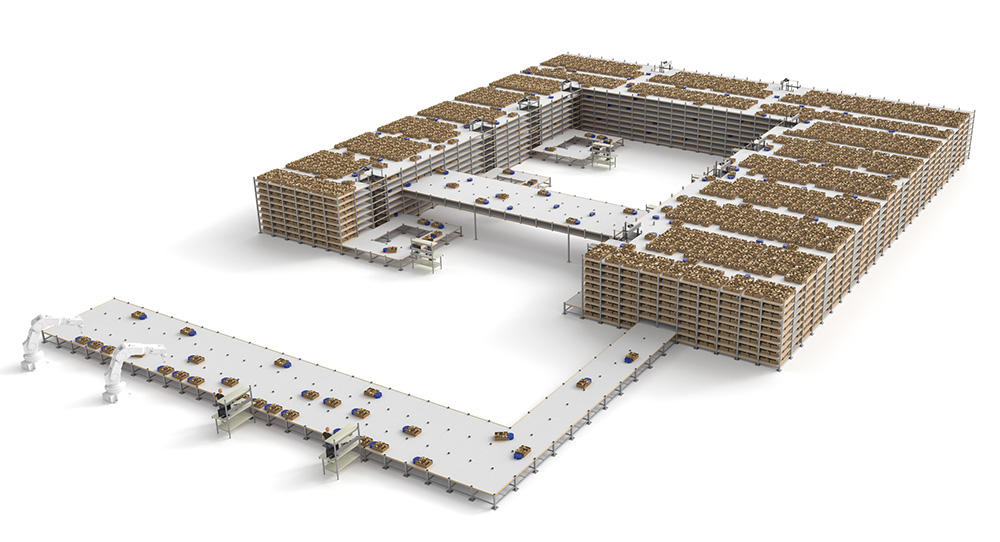

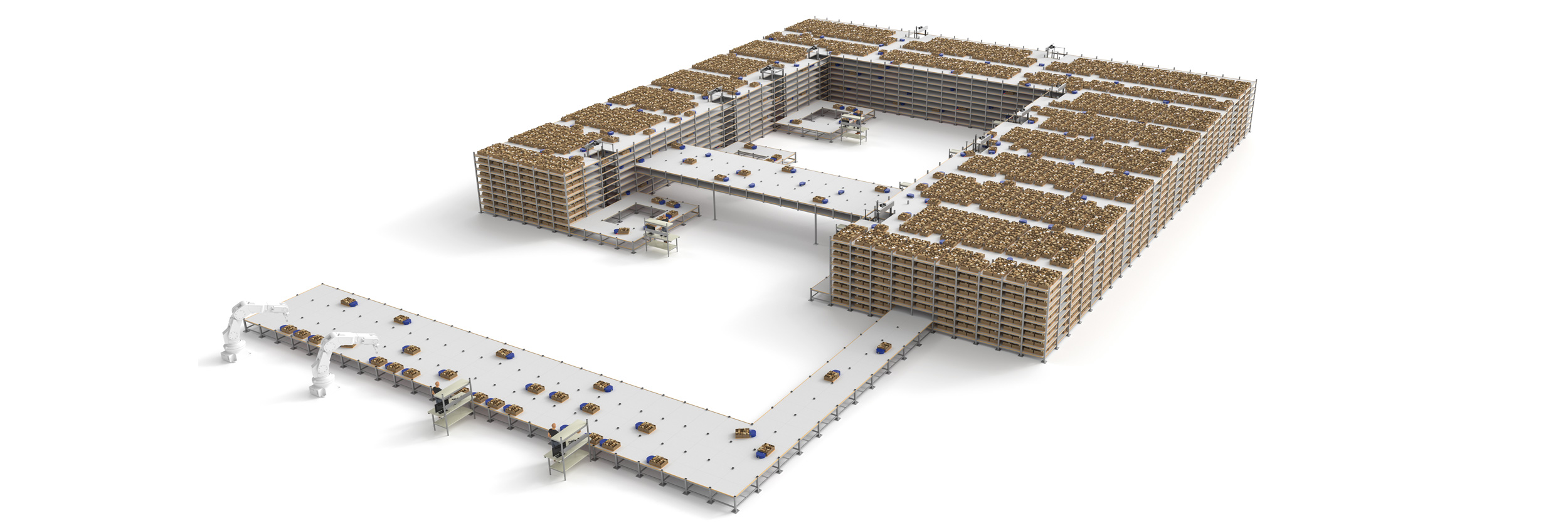

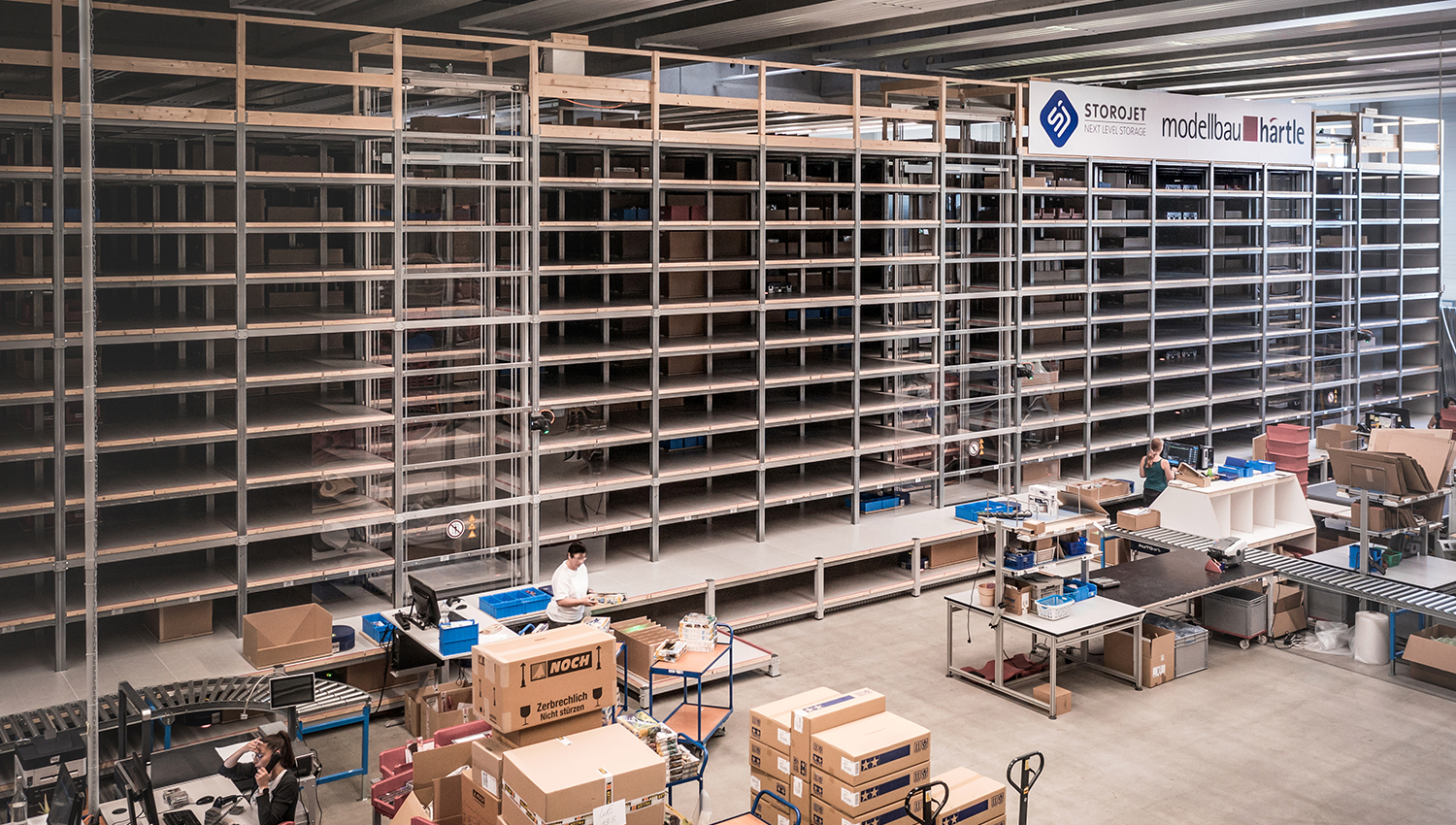

The STOROJET Automatic Storage and Retrieval System, designed and manufactured in Germany, provides cost-effective access to warehouse automation for medium-sized enterprises with a minimum floor space of 100 m². The levels of the storage blocks, reaching heights of up to 12 m, are interconnected via elevators. This system facilitates the transportation of carriers with a width of 50 cm and a length of 50 to 90 cm to the picking stations through specially designed storage robots.

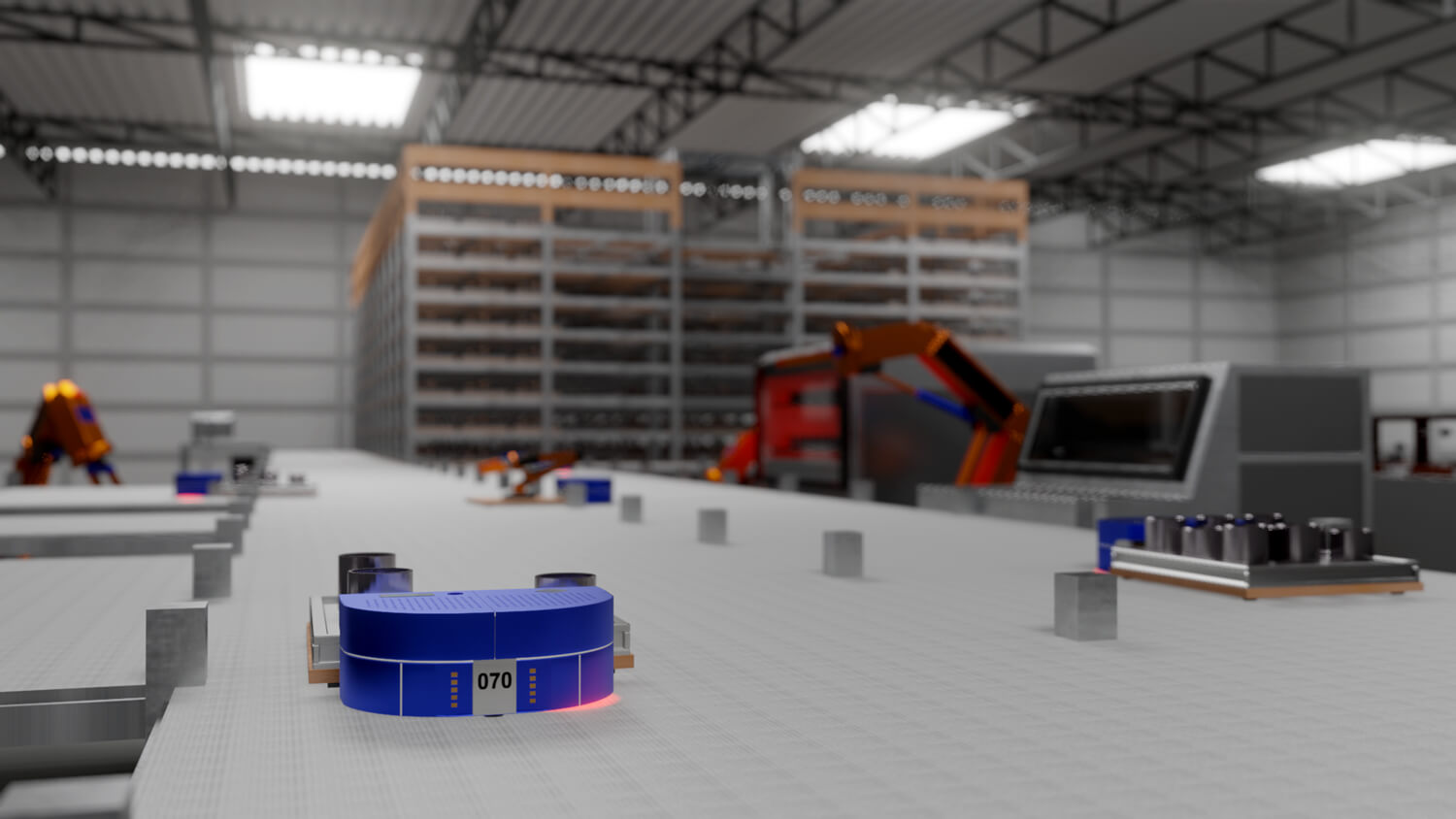

A conveyor belt, reimagined and set free. Thanks to its modularity, the STOROJET system can also function as a highly redundant conveyor belt replacement system directly connected to an Automatic Storage and Retrieval System (AS/RS). Goods are stored on mini Automated Guided Vehicle (AGV) trailers and positioned precisely at the machines. The system forms the foundation for the flexible interconnection of manufacturing machines, enabling individualized production automation of small parts, all the way down to batch size 1.
storojet is the world's first automated multi-storey area racking system.
What is STOROJET?
STOROJET is an automatic storage and order picking system Made in Germany.

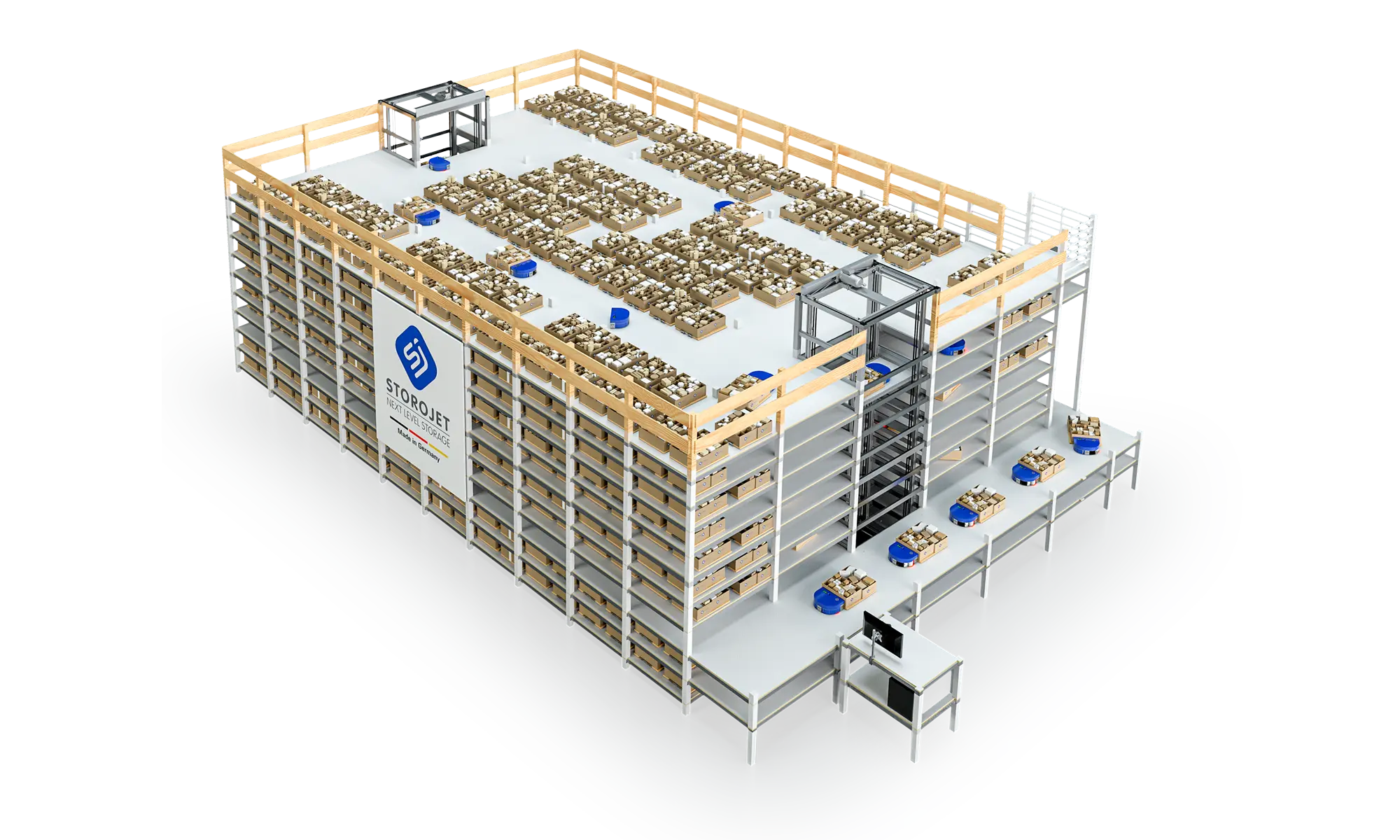

The extremely flexible and modular racking system connects several levels via lifts and enables compact autonomous storage robots to transport product carriers to picking stations in an energy-efficient manner.
In addition to optimised space utilisation of up to 12 m in height, an unrivalled, low-cost reduction in picking times of between 30 and 80 percent can be achieved without any problems.
12345678910111213141516
Massive reduction of picking times between 30 and 80 percent
Continuous optimisation of storage areas
Optimised space utilisation in height, area and geometry
Expandable during ongoing operations
Transport of heterogeneous goods
Energy-saving system with low operating costs
Pick-by-light support for order pickers
Individually configurable product carriers
High process reliability of the storage locations
Simple operation, low training expenditure
Inventory at the touch of a button, continuous inventory
Simplified storage of new products or returns
Improved theft protection and documentation
Flexible expandability and adaptability as required
Inexpensive implementation - Made in Germany
Ready for industry 4.0
Technology Made in Germany at an affordable priceThe STOROJET automatic storage and order picking system is unrivalled in terms of cost-effectiveness, from procurement through continuous expansion to minimum operating costs. With STOROJET, flexibility and economy enter into an inseparable symbiosis and offer you undreamt-of possibilities at an affordable price and all this Made in GermanyReduction of picking timesThe increased picking performance between 30 and 80% is easily achieved by the automatic storage robots due to their sheer number. Even before the current picking list appears on the order picker's monitor, multiple robots are set in motion in order to maintain an uninterrupted flow of goods-to-people.Tailor-made picking stationsThe picking stations, as well as the entire shelving system, can be individually adapted to the needs of the customer. In addition to simple, directly adjacent stations, it is also possible to equip them, for the order picker, with ergonomic U-shaped loops or a complex branched shape leading through the warehouse to the logistically well-placed picking stations.Full automation for productionAt the picking station, the goods carriers impress with another pioneering feature. They are completely accessible from above and thus offer the best prerequisites to upgrade to automatic manipulators.Adaptable in area, height and geometryThe up to 12 m high shelving system can be flexibly designed on the basis of the surface area of the shelves (1.6 x 1.2 m). Whether a simple cuboid, a U- or T-shape or impressive customised special designs, there are no limits. The various levels of the shelving system can be adjusted in height from 17 cm to 100 cm depending on the products to be stored.Structure: As required in the area of the base area (W x D) 1.6m x 1.2 m

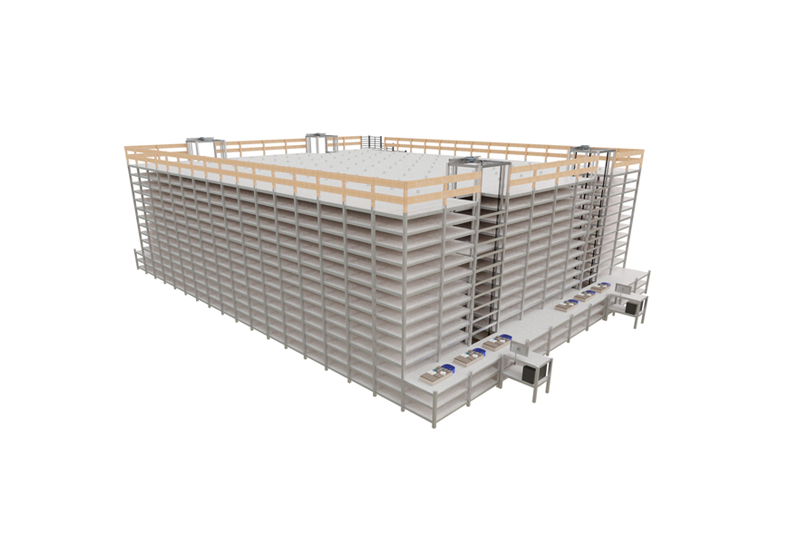

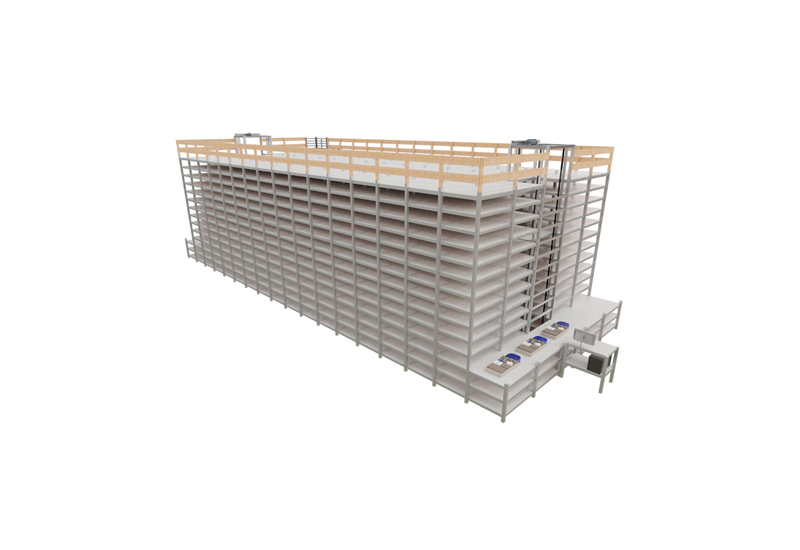

Height: Up to 12 m
Shelf spacing: (H) 17 cm to 100 cm

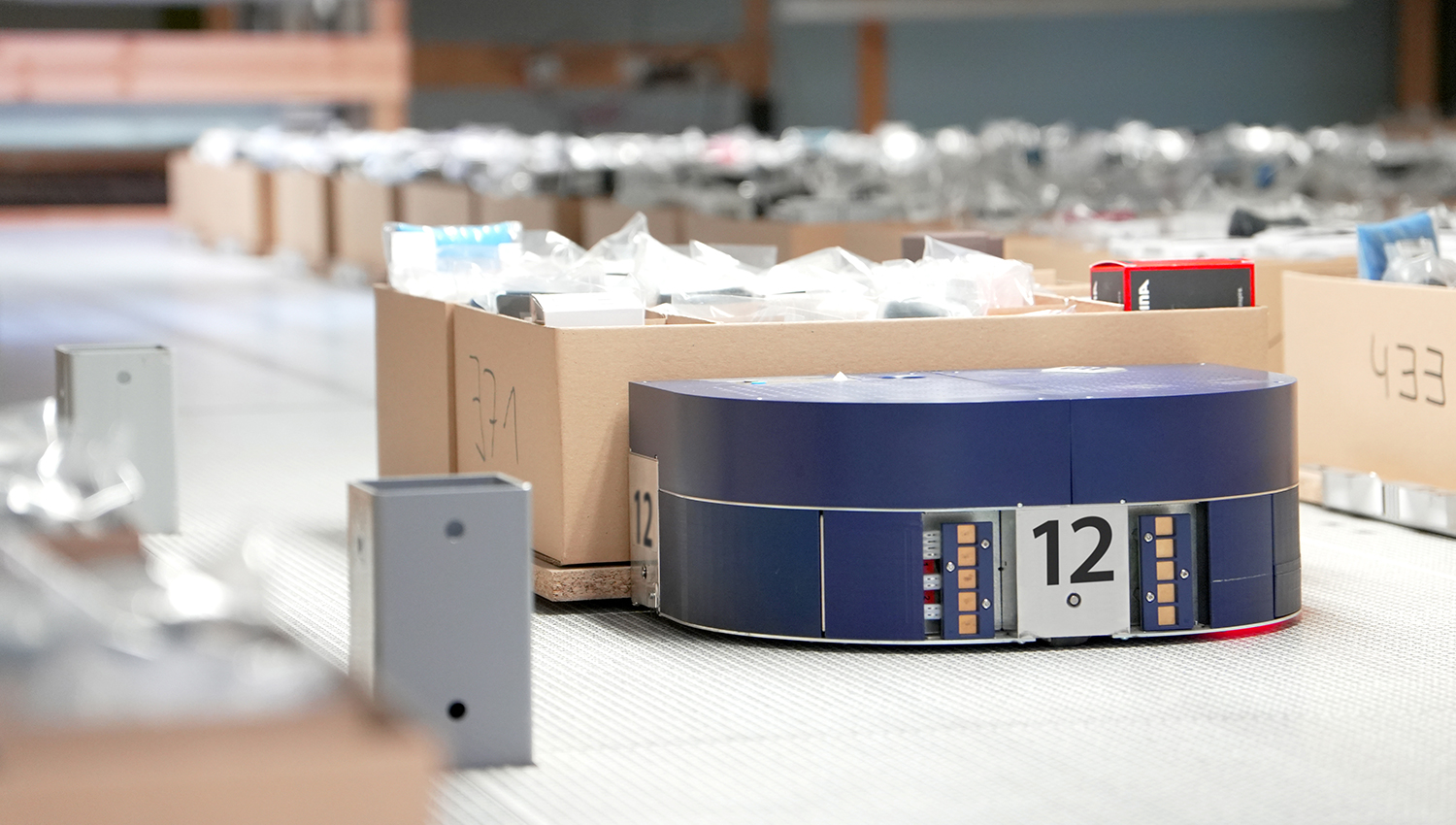

Simplified storageThe storage of new products or returns in the racking system can either take place before the start of the shift, parallel to the current order picking or overnight.Energy saving systemThanks to the latest technology and a perfectly balanced ratio between weight and tensile load, STOROJET stands for low operating costs and maximum cost-efficiency.Pick-by-LightThe Pick-By-Light illumination unit highlights the goods to be removed, on the relative shelf of the product carrier system, with a beam of light allowing them to be picked quickly.STOROJET RO70 RobotThe robots are not rail-bound and can move freely, being guided on the Navigation Shelf Boards via coding and are coordinated wirelessly by the Central System. The robots are the size of a home robotic lawnmower but are far more powerful and achieve a considerable transport volume.
Size: (W x D x H) 40 x 27.5 x 15 cm
Weight: 15kg
Operating temperature: 10°C-40°C
Maximum tensile load: 27kg
Battery: LiFePo
Duration of use: 8h per battery charge
Charging time: 3h
Communication: Wi-Fi (IEEE 802.1 a/b/g, 2.4 GHz)
Navigation: Fully automatic based on ground markings, coordinated by the central system

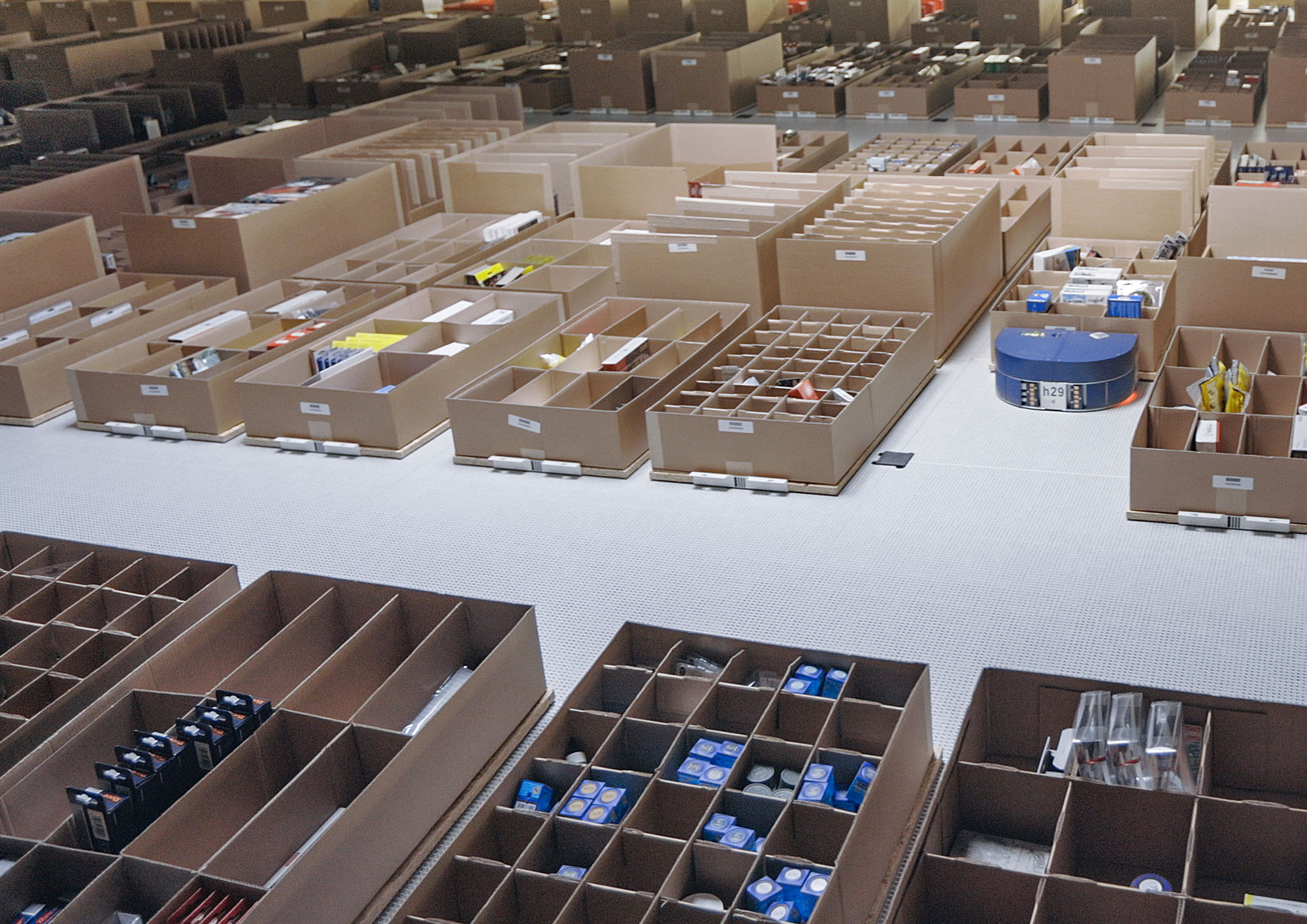

Individual goods carriersThe goods carriers, each with a footprint of 50 × 50 to 90 cm (W × D), are stowed closely together and can be customised according to the customer's requirements. From simple storage areas, cardboard boxes with individual compartments all the way to specialised solutions, everything is possible.
Load capacity: 20 kg
Structure: Individually constructed according to the size of the base area.
Prepared for the inventory at the touch of a buttonThe inventory is started at the push of a button and is, once again, supported by Pick-by-Light. Not only is there a noticeable reduction of the time required but also, seen over the whole year, the high process reliability of the system is particularly marked.Theft protection and documentationThanks to the fixed picking stations, video surveillance of the output points can be installed with little effort and, in addition to improved documentation, increased theft protection can be directly integrated. Depending on the value of the stored goods, the shelving system can also be completely clad in+ any material.Flexible, expandable and customisableDue to the modularity of the STOROJET system, the area of the shelves and the number of robots can be extended at any time even during operation.Efficient liftsThe individual levels of the automated shelving system are connected by fast elevators allowing the small picking robots to quickly switch between the levels.Optimisation of storage spacesDepending on customer requirements, STOROJET storage robots can autonomously implement an ongoing optimisation of the storage space and are able to proactively deal with seasonal peaks of specific product groups.Ready for industry 4.0Simple interfaces allow rapid integration into existing technology. With STOROJET, the benefits of digitising logistics can be used immediately.
